Long-Range Level Option for Flo-Dar

The long range level option for the Flo-Dar family of flowmeters effectively increases the range of the level sensor from 60 inches to 240 inches.

The long-range level option is now (optionally) available with the following Intrinsic Safety certification:

United States & Canada
Conforms to UL STD 2279
Certified to CAN/CSA-E79-0-95, CAN/CSA-E79-11-95
Class 1, Zone 1 or 2, Group IIB hazardous Areas

Europe
EEx ia m IIB T4

*Consult factory for details before purchasing or specifying the Intrinsically Safe version of this product.

Pictured at left is the Flo-Dar sensor in-situ, mounted in a permanent sensor mounting assembly.

The extended level sensor and standard radar velocity sensor are labeled.

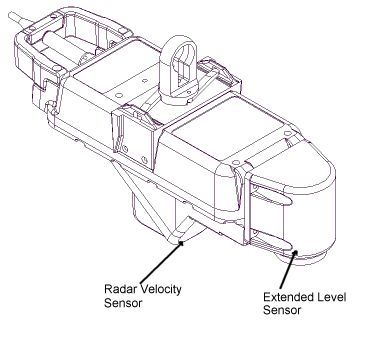

The drawing below shows a different perspective of the
same sensor.
